Прошивка для Lenovo A680

В этой тебе обсуждается прошивка Lenovo A680

Если вам требуется прошивка Lenovo A680 - напишите в этой теме полный номер вашей модели и нужную версию андройд!

Hi,thre my lenovo A680 already brick. It's impossible to make it right again? I only cant go to bootloader..when normally swicth on there r no boot img or sound only black..it happen after i updates it..phone shop people said my imei already missing..plz help..

Сообщение от Albertkenz

Hi,thre my lenovo A680 already brick. It's impossible to make it right again? I only cant go to bootloader..when normally swicth on there r no boot img or sound only black..it happen after i updates it..phone shop people said my imei already missing..plz help..

it's possible. do you know how to flash firmware via SP Flash Tool? Or you need a tutorial?

I dunt know...can u gve me the tutorial... Tq.

Сообщение от Albertkenz

I dunt know...can u gve me the tutorial... Tq.

alright. wait a little bit.

Ok...

Сообщение от Albertkenz

Hi,thre my lenovo A680 already brick. It's impossible to make it right again? I only cant go to bootloader..when normally swicth on there r no boot img or sound only black..it happen after i updates it..phone shop people said my imei already missing..plz help..

Installing drivers

1. Download from the attachments usb vcom driver.rar archive and extract it. You'll get a folder with drivers
2. Now open the Device manager on your PC
3. Now turn off your phone completely and take out the battery and afterwards put it back into the phone, but do not turn the phone on! leave it like that
4. Connect turned off phone to the PC and immediately watch at the device manager, you should see there a new device, something like MT65xx Preloader. Righ click it, choose to update drivers and choose to update them manually, and then navigate to the folder with drivers you have extracted from the archive
5. Wait till the drivers install (should be fairly quick)

Note that if you have Windows 8 or 8.1 you will need to disable digital signature verification of drivers on you PC, just google it you'll find a vid on youtube I'm sure.

Flashing firmware

1. Download the firmware, depending on a version of your Lenovo A680:

• S316 firmware for А680 with 512 MB RAM
• S324 firmware for A680 with 1024 MB RAM

2. After you've downloaded the archive with a firmware, extract it to the root of disk C or D on your PC
3. Now download the SP Flash Tool, the tool which will flash this firmware. Archive sp_flash_tool_v3.1336.0.198.zip below
4. Extract the archive with a flash tool, enter the folder with it and run Flash_tool.exe. The window of the tool will pop up, choose Scatter-loading button and then you'll see the browsing window, navigate to the folder with a firmware and choose the MT6582_Android_scatter.txt
5. After that check the box DA DL All With Check Sum and check that all the boxes are ticked like it's shown on the screenshot below



6. Now make sure the phone is not connected to the PC and press the button Firmware->Upgrade in the Flash Tool window and wait like 5-10 seconds
7. After that, take you phone, turn it off, take out the battery, put it back into the phone but do not turn on the phone. Now just connect turned off phone to the PC and the flashing proccess should start itself, you'll be able to see it in the flash tool window. Wait till it finished, you will be notified about that with a small window with a green circle in it, it means that flashing is done
8. Now disconnect the phone from PC, take out and put back the battery again and finally start the phone as usually, the first boot after flashing firmware should take quite a lot of time (more than usual start).

Cкачать:

usb vcom driver.rar

10.6 Кб

sp_flash_tool_v3.1336.0.198.zip

7.03 Мб

Hello thre...i already try the way that u ask...but i am cannot extract firmware completely some of the data...(ANDROID & USERDATA) it say bad format and it also said checksum is too large...may i know why?

Сообщение от Albertkenz

Hello thre...i already try the way that u ask...but i am cannot extract firmware completely some of the data...(ANDROID & USERDATA) it say bad format and it also said checksum is too large...may i know why?

what do you mean you can't extract firmware, you can't unpack the .rar archive with it?

Yes correct... I already try....the file be corrupted...

And one other thing did u know regarding leagoo lead 5?

Сообщение от Albertkenz

Yes correct... I already try....the file be corrupted...

I just downloaded both of the archives and extracted them with ease, I don't know why you can't unpack them.

What other thing about leagoo lead 5?

Ok tomorrow i will try again extract the pack..
I already buy new leagoo lead 5...its thre rom for it...and 4 ur information my lead 5 is different spec i only have 5mp for cam...i think i want to upgrade it to the official one...is thre any link to download the firmware..or custom one?

Сообщение от Albertkenz

Ok tomorrow i will try again extract the pack..
I already buy new leagoo lead 5...its thre rom for it...and 4 ur information my lead 5 is different spec i only have 5mp for cam...i think i want to upgrade it to the official one...is thre any link to download the firmware..or custom one?

Sorry. I don't quite understand you There's a stock ROM on Android 4.4 KitKat for Leagoo Lead 5 and also there's a custom recovery for it.

Did u know how to install recovery img for this model?

Сообщение от Albertkenz

Did u know how to install recovery img for this model?

On leagoo lead 5? Yes I know how to install custom recovery (recovery.img) on it. there's a thread about it: Root права на Leagoo Lead 5 + TWRP Recovery

ask in that thread please if you want to know something about installing recovery.img on leagoo lead 5. this thread is about Lenovo A680

Ok tq...

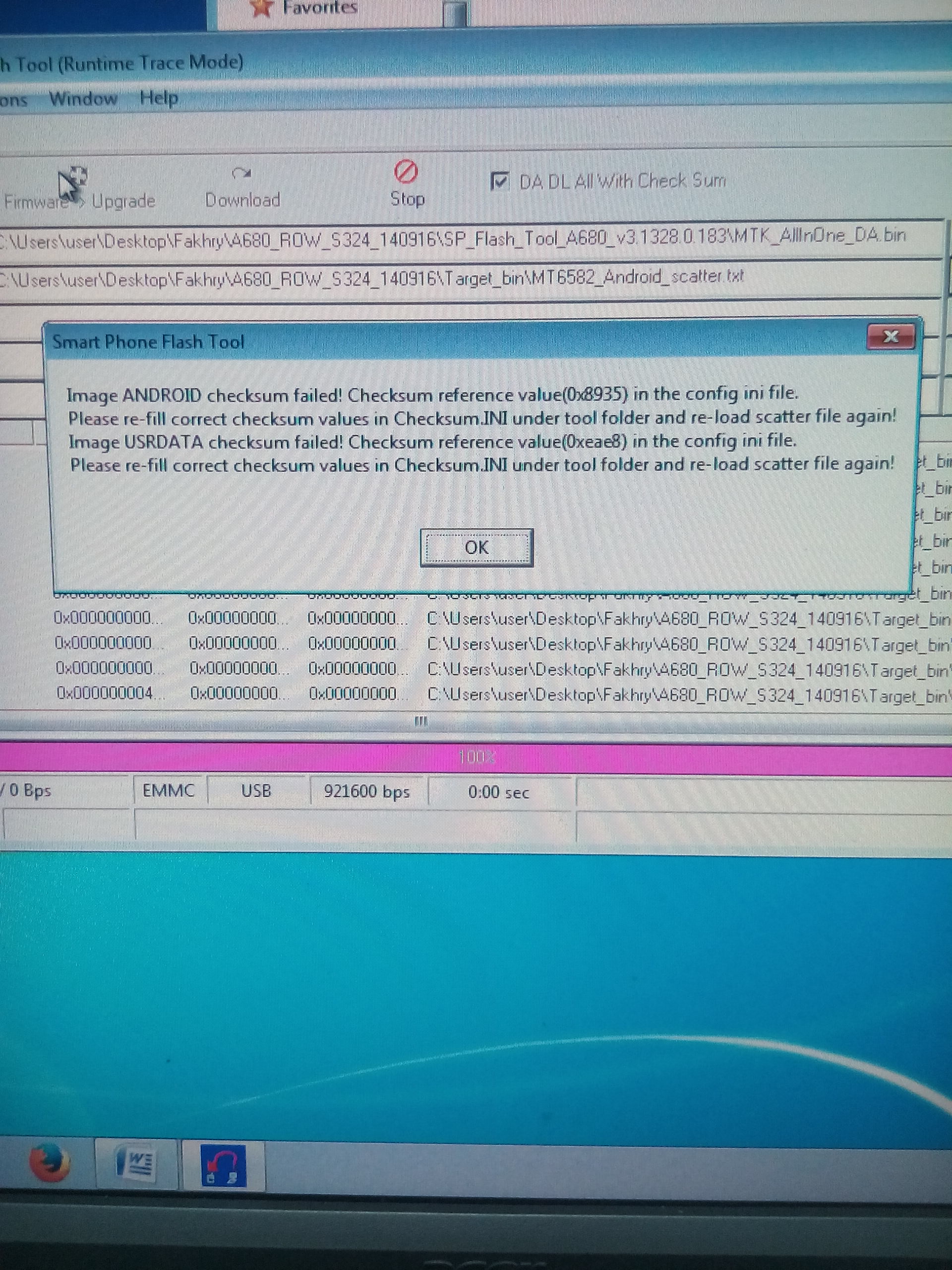

Hi thre here is my issue...i already done the proses according to u instruction but same thing happen..find my attc.



Сообщение от Albertkenz

Hi thre here is my issue...i already done the proses according to u instruction but same thing happen..find my attc.

delete the file checksum.ini which is located in firmware folder.

Whre cant i find firmware folder

Whre can i find this folder
