MT8227L 7 Inch Android 8.0 Double Din Stereo Radio - Bricked

Hi,

I bought MP5 and after try change startup logo my unit dont boot correctly. It stay rebooting.

I tryed flash a new rom but keep geting error listed below:

s_ft_enable_dram_fail (4032)

I'm using this software spflashtool and a rom downloaded in internet.

Somebody can help me?



What is the mainboard number?

Сообщение от Fish

What is the mainboard number?

It has multiples number on main board.

The numbers that u need are these?

YT9217 V1.61 16G
A005-YT9217C004
20190325

I can sent you pictures if need.

The boot erro started after I change startup logo by a jpeg imagem

Сообщение от mayconcf

It has multiples number on main board.
The numbers that u need are these?
YT9217 V1.61 16G
A005-YT9217C004
20190325
I can sent you pictures if need.
The boot erro started after I change startup logo by a jpeg imagem

try this it: https://mega.nz/#!fQEhBQIC!pbBjQrE3T...w0jFcC6fnx9Pg0 (xyauto_ui2_9218C_full_8227L-20190118_HIFI)
source: http://4pda.ru/forum/index.php?showtopic=936535&st=3760

Сообщение от Fish

try this it: https://mega.nz/#!fQEhBQIC!pbBjQrE3T...w0jFcC6fnx9Pg0 (xyauto_ui2_9218C_full_8227L-20190118_HIFI)
source: http://4pda.ru/forum/index.php?showtopic=936535&st=3760

Same error.

Only way for device to be recognized by windows is by TP (test point), but when release TP the windows lost connection and flash tool fail.

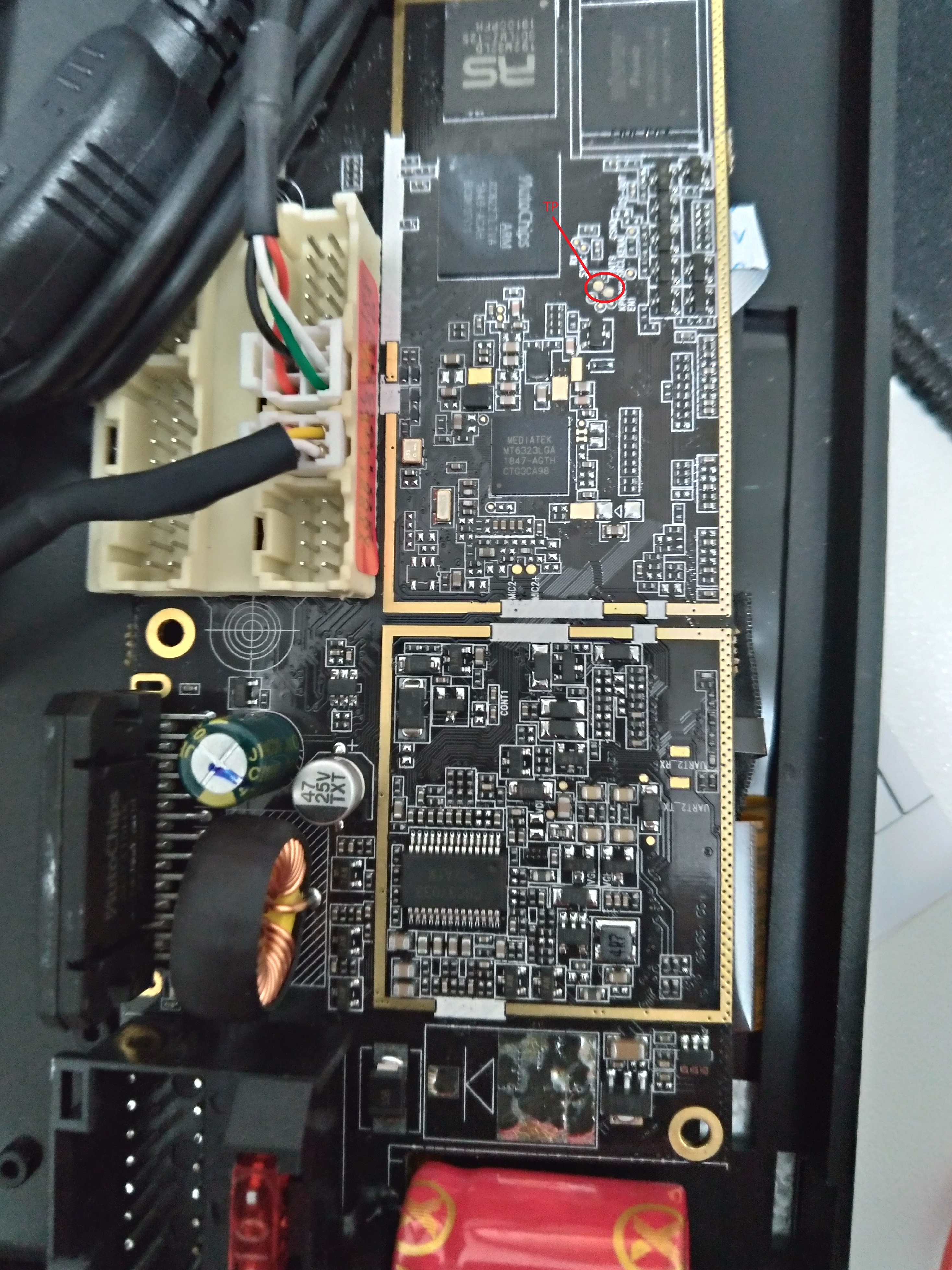

Picture of my main board atthaced.



Сообщение от mayconcf

Same error.
Only way for device to be recognized by windows is by TP (test point), but when release TP the windows lost connection and flash tool fail.
Picture of my main board atthaced.

error 4032?

Сообщение от Fish

error 4032?

Yes.

Сообщение от mayconcf

Yes.

write to the seller and ask for the firmware

or

try it flash TWRP from this source, boot into TWRP and restory files logo from FileManager (TWRP - menu advanced)

Сообщение от Fish

write to the seller and ask for the firmware

or

try it flash TWRP from this source, boot into TWRP and restory files logo from FileManager (TWRP - menu advanced)

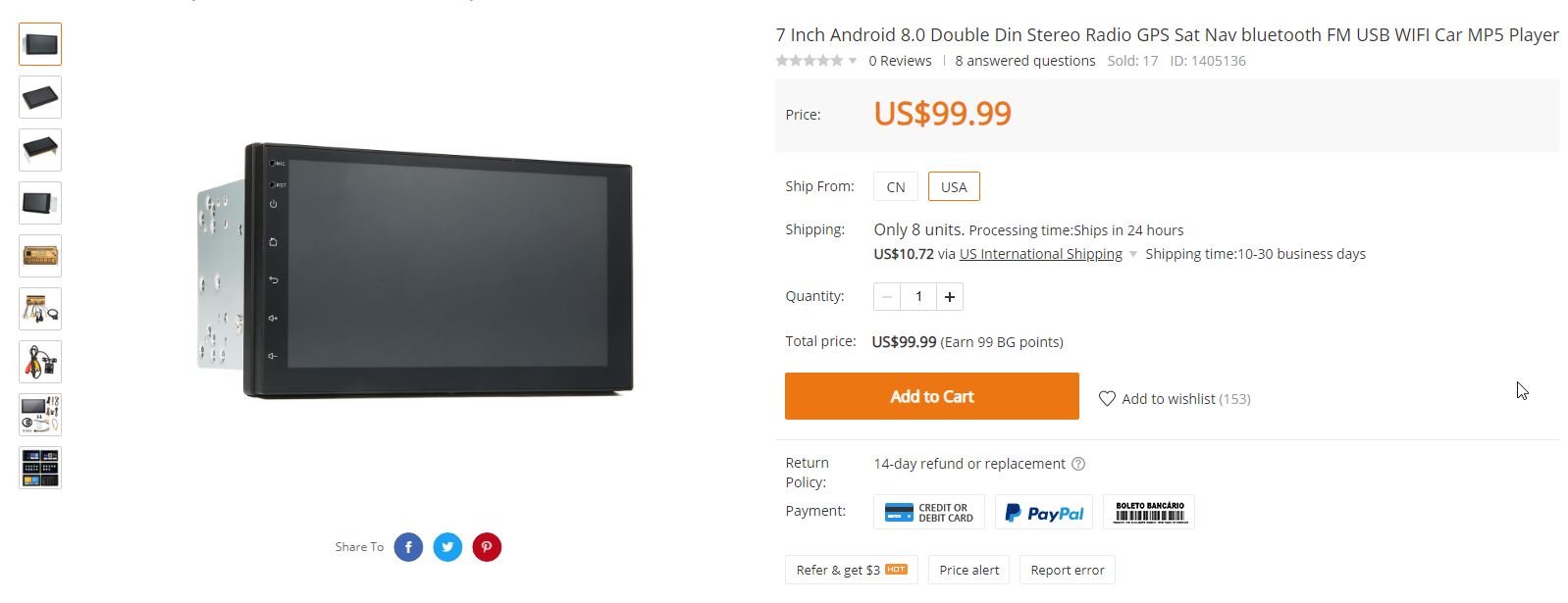

I bought bangood.com and I`m wainting for 30 day one support and nothing yet.

I will try install twrp, the processor is mediatek 8227L. I hope success, i dont no more what to do.
